產品介紹：

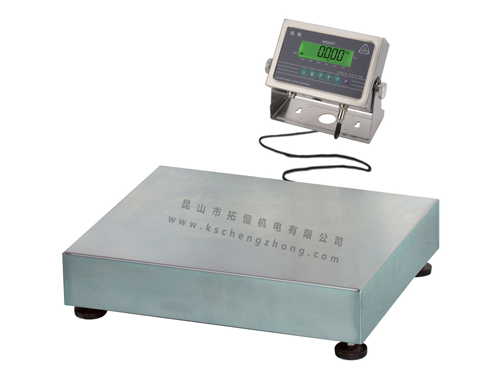

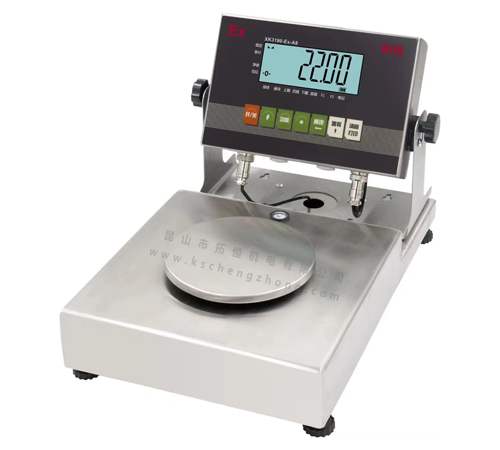

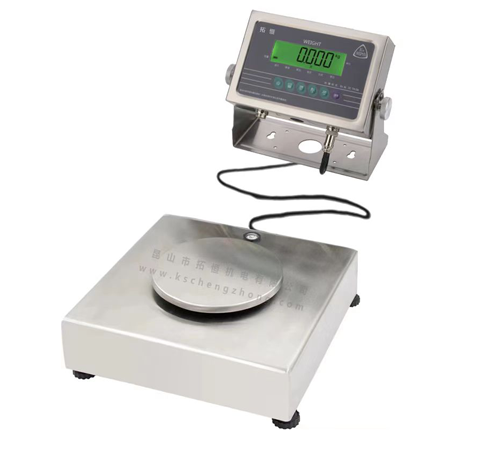

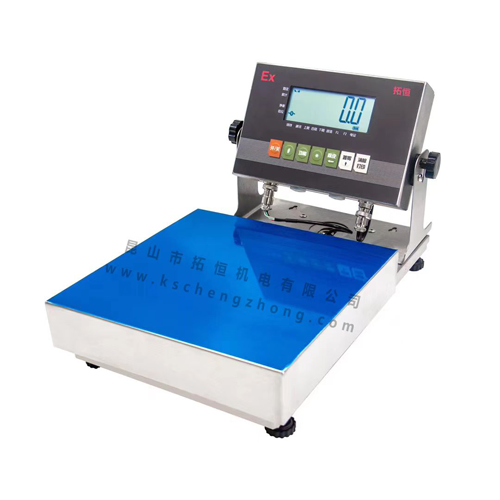

由拓恒公司提供的此系列電子天平秤，采用高精度懸臂梁稱重傳感器和智能型稱重顯示儀表，具有準確度高，稱量迅速，工作穩定可靠，維護簡單等特點；秤臺材質采用全304不銹鋼材質
功能特點：
? 通訊接口：WIFI(支持ModBus-TCP及TCP/IP協議)
? 顯示：6位高亮LED顯示，讀數清晰，顯示直觀
? 置零范圍：滿量程
? 電源：充電 / 插電兩用，內藏免維護蓄電池，充電電源AC220V
? 材質：304不銹鋼材質
? 過載能力：150%滿量程
? 重復性：2d
? 線性：2d
? 防護等級：IP66以上
? 工作溫度：-10℃ ~ 60℃
? 反應速度快，靈敏度高：(1) 從加載起到達穩定所需時間短；(2) 從貨物移除起到達零點之速度快，
無殘留；(3) 置零、去皮鍵啟動反應速度快
? 獨特的稱重穩定處理程序，抗震動性更強
? 選配：防爆配置，計數款，上下限三色報警燈，稱重記錄U盤存儲功能，標簽打印機等
? 外形結構可選：分體式
? 通訊接口可選：藍牙；RS232；RS485（ModBus RTU）；4-20mA模擬量；USB直讀；4G；
ModBus-TCP；Profibus-DP；PROFINET；TCP/IP；WIFI；定量輸出控制(I/O接口：四進四出)等
產品規格：
產品編號 | 最大稱量 | 分度值 | 秤盤尺寸 | 重復性 | 線性 | 穩定時間 |
百分位系列 | ||||||
TH7362-110-WIFI | 110g | 0.01g | Φ130mm | 0.02g | 0.03g | ≤2S |
TH7362-210-WIFI | 210g | 0.01g | Φ130mm | 0.02g | 0.03g | ≤2S |
TH7362-310-WIFI | 310g | 0.01g | Φ130mm | 0.02g | 0.03g | ≤2S |
TH7362-510-WIFI | 510g | 0.01g | Φ130mm | 0.02g | 0.03g | ≤2S |
TH7362-610-WIFI | 610g | 0.01g | Φ130mm | 0.02g | 0.03g | ≤2S |
TH7362-810-WIFI | 810g | 0.01g | Φ130mm | 0.02g | 0.03g | ≤2S |
TH7362-1100-WIFI | 1100g | 0.01g | Φ130mm | 0.02g | 0.03g | ≤2S |
TH7362-2100-WIFI | 2100g | 0.02g | Φ130mm | 0.04g | 0.04g | ≤2S |
TH7362-3100A-WIFI | 3100g | 0.02g | Φ130mm | 0.04g | 0.04g | ≤2S |
TH7362-3100B-WIFI | 3100g | 0.05g | Φ130mm | 0.1g | 0.1g | ≤2S |
TH7362-5100A-WIFI | 5100g | 0.02g | Φ90mm | 0.04g | 0.04g | ≤2S |
TH7362-5100B-WIFI | 5100g | 0.05g | Φ130mm | 0.1g | 0.1g | ≤2S |
TH7362-6100A-WIFI | 6100g | 0.02g | Φ90mm | 0.04g | 0.04g | ≤2S |
TH7362-6100B-WIFI | 6100g | 0.05g | Φ130mm | 0.1g | 0.1g | ≤2S |
TH7362-8100A-WIFI | 8100g | 0.02g | Φ90mm | 0.04g | 0.04g | ≤2S |
TH7362-8100B-WIFI | 8100g | 0.05g | Φ130mm | 0.1g | 0.1g | ≤2S |
TH7362-9100A-WIFI | 9100g | 0.02g | Φ90mm | 0.04g | 0.04g | ≤2S |
TH7362-9100B-WIFI | 9100g | 0.05g | Φ130mm | 0.1g | 0.1g | ≤2S |
3kg系列 | ||||||
TH7360-2025-03A-WIFI | 3kg | 0.05g | 200ⅹ250mm | 0.1g | 0.1g | ≤2S |
TH7360-2025-03B-WIFI | 3kg | 0.1g | 200ⅹ250mm | 0.2g | 0.2g | ≤2S |
TH7360-2025-03C-WIFI | 3kg | 0.2g | 200ⅹ250mm | 0.4g | 0.4g | ≤2S |
TH7360-3040-03A-WIFI | 3kg | 0.2g | 300ⅹ400mm | 0.4g | 0.4g | ≤2S |
TH7360-3040-03B-WIFI | 3kg | 0.5g | 300ⅹ400mm | 1g | 1g | ≤2S |
TH7360-3040-03C-WIFI | 3kg | 1g | 300ⅹ400mm | 2g | 2g | ≤2S |
TH7360-4050-03A-WIFI | 3kg | 0.5g | 400ⅹ500mm | 1g | 1g | ≤2S |
TH7360-4050-03B-WIFI | 3kg | 1g | 400ⅹ500mm | 2g | 2g | ≤2S |
6kg系列 | ||||||
TH7360-2025-06A-WIFI | 6kg | 0.1g | 200ⅹ250mm | 0.2g | 0.2g | ≤2S |
TH7360-2025-06B-WIFI | 6kg | 0.2g | 200ⅹ250mm | 0.4g | 0.4g | ≤2S |
TH7360-2025-06C-WIFI | 6kg | 0.5g | 200ⅹ250mm | 1g | 1g | ≤2S |
TH7360-3040-06A-WIFI | 6kg | 0.2g | 300ⅹ400mm | 0.4g | 0.4g | ≤2S |
TH7360-3040-06B-WIFI | 6kg | 0.5g | 300ⅹ400mm | 1g | 1g | ≤2S |
TH7360-3040-06C-WIFI | 6kg | 1g | 300ⅹ400mm | 2g | 2g | ≤2S |
TH7360-4050-06A-WIFI | 6kg | 0.5g | 400ⅹ500mm | 1g | 1g | ≤2S |
TH7360-4050-06B-WIFI | 6kg | 1g | 400ⅹ500mm | 2g | 2g | ≤2S |
15kg系列 | ||||||
TH7360-2025-15A-WIFI | 15kg | 0.1g | 200ⅹ250mm | 0.2g | 0.2g | ≤2S |
TH7360-2025-15B-WIFI | 15kg | 0.2g | 200ⅹ250mm | 0.4g | 0.4g | ≤2S |
TH7360-2025-15C-WIFI | 15kg | 0.5g | 200ⅹ250mm | 1g | 1g | ≤2S |
TH7360-3040-15A-WIFI | 15kg | 0.5g | 300ⅹ400mm | 1g | 1g | ≤2S |
TH7360-3040-15B-WIFI | 15kg | 1g | 300ⅹ400mm | 2g | 2g | ≤2S |
TH7360-4050-15A-WIFI | 15kg | 0.5g | 400ⅹ500mm | 1g | 1g | ≤2S |
TH7360-4050-15B-WIFI | 15kg | 1g | 400ⅹ500mm | 2g | 2g | ≤2S |
30kg系列 | ||||||
TH7360-2025-30A-WIFI | 30kg | 0.1g | 200ⅹ250mm | 0.2g | 0.2g | ≤2S |
TH7360-2025-30B-WIFI | 30kg | 0.5g | 200ⅹ250mm | 1g | 1g | ≤2S |
TH7360-2025-30C-WIFI | 30kg | 1g | 200ⅹ250mm | 2g | 2g | ≤2S |
TH7360-3040-30A-WIFI | 30kg | 0.5g | 300ⅹ400mm | 1g | 1g | ≤2S |
TH7360-3040-30B-WIFI | 30kg | 1g | 300ⅹ400mm | 2g | 2g | ≤2S |
TH7360-3040-30C-WIFI | 30kg | 2g | 300ⅹ400mm | 4g | 4g | ≤2S |
TH7360-4050-30A-WIFI | 30kg | 0.5g | 400ⅹ500mm | 1g | 1g | ≤2S |
TH7360-4050-30B-WIFI | 30kg | 1g | 400ⅹ500mm | 2g | 2g | ≤2S |
TH7360-4050-30C-WIFI | 30kg | 2g | 400ⅹ500mm | 4g | 4g | ≤2S |
60kg系列 | ||||||
TH7360-3040-60A-WIFI | 60kg | 0.5g | 300ⅹ400mm | 1g | 1g | ≤2S |
TH7360-3040-60B-WIFI | 60kg | 1g | 300ⅹ400mm | 2g | 2g | ≤2S |
TH7360-3040-60C-WIFI | 60kg | 2g | 300ⅹ400mm | 4g | 4g | ≤2S |
TH7360-4050-60A-WIFI | 60kg | 1g | 400ⅹ500mm | 2g | 2g | ≤2S |
TH7360-4050-60B-WIFI | 60kg | 2g | 400ⅹ500mm | 4g | 4g | ≤2S |
TH7360-4050-60C-WIFI | 60kg | 5g | 400ⅹ500mm | 10g | 10g | ≤2S |
100kg系列 | ||||||
TH7360-3040-100A-WIFI | 100kg | 1g | 300ⅹ400mm | 2g | 2g | ≤2S |
TH7360-3040-100B-WIFI | 100kg | 2g | 300ⅹ400mm | 4g | 4g | ≤2S |
TH7360-3040-100C-WIFI | 100kg | 5g | 300ⅹ400mm | 10g | 10g | ≤2S |
TH7360-4050-100A-WIFI | 100kg | 1g | 400ⅹ500mm | 2g | 2g | ≤2S |
TH7360-4050-100B-WIFI | 100kg | 2g | 400ⅹ500mm | 4g | 4g | ≤2S |
TH7360-4050-100C-WIFI | 100kg | 5g | 400ⅹ500mm | 10g | 10g | ≤2S |
秤臺材質：全304不銹鋼 | ||||||
秤臺尺寸可定制；稱量可定制 | ||||||
